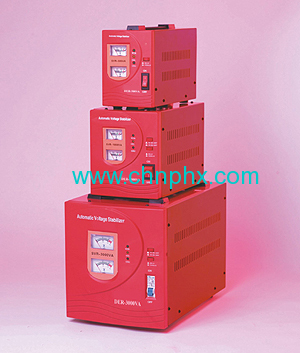

DER Relay type voltage regulator Feature This series automatic voltage regulator is a kind of relay control stabilizer,it owns the wide input voltage range,compact size,light in weight,delay output,little wave distortion and reliable,strict design and accurate assemble.this kind of stabilizer can add voltage regulating function also.In one word,this type stabilizer is very popular in overseas for the competitive and stable performance.

Technical Features Input voltage:150-270V Output voltage:220V±8% 110V±10% Delay output time:3-7min/3-7sec Frequency:50HZ/60HZ Model Requirements Model 1 Model 2 Model 3 Model 4 Model 5 Model 6 Power(VA) DER-500VA DER-1000VA DER-1500VA DER-2000VA DER-3000VA DER-5000VA Input Phase Single phase Voltage AC150V-270V Frequency 50HZ/60HZ Output Phase 220V±8% 110V±10% Voltage 98% Frequency 50HZ/60HZ Over voltage protection AC 246V±4V Protection Under-volt Optional Over-volt Optional Over heat Optional By pass No Delay 3-7min/3-7sec(optional) Over load/short circuit yes Environment Operating temperature -10~40℃ Storage temperature -15~45℃ humidity 20% to 90% Packaging Pcs per carton 8 4 4 4 1 1 Machine size(cm) 23.5×11.2×16.5 24.5×15×18 24.5×15×18 24.5×15×18 35×22×25.5 35×22×25.5 Package dimensions(cm) 49×27.5×36 30.5×32×39.5 30.5×32×39.5 30.5×32×39.5 39.5×25×29 39.5×25×29

DER Relay type voltage regulator has been presented above, want more similar products, please click DVR digital relay type voltage stabilizer,digital relay type voltage stabilizer,DER Relay type voltage regulator.
